Home > Overhead Insulated Cable(ABC Cable) > CAAI Cable

Description :

APPLICATIONS
For air networks of secondary distribution of low-cost electricity in urban and rural areas.
They are installed both in posts and attached to walls, in both cases, with the appropriate accessories.
They do not require the use of insulators.

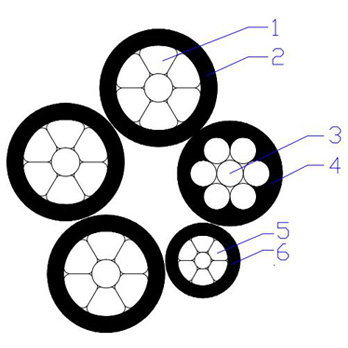

CONSTRUCTION
1.Phase conductor: Hard drawn aluminum conductor (class 2)
2.Neutral messenger conductor: Aluminum alloy conductor (AAAC 6201)
3.Lighting conductor:Hard drawn aluminum conductor (class 2)
4.Insulation: XLPE

DESIGNATION
CAAI--- Aluminum conductor with aluminum alloy support conductors, the support conductor can be bare "ND" or insulated “NA ".

Product title :

CAAI Cable

Parameter

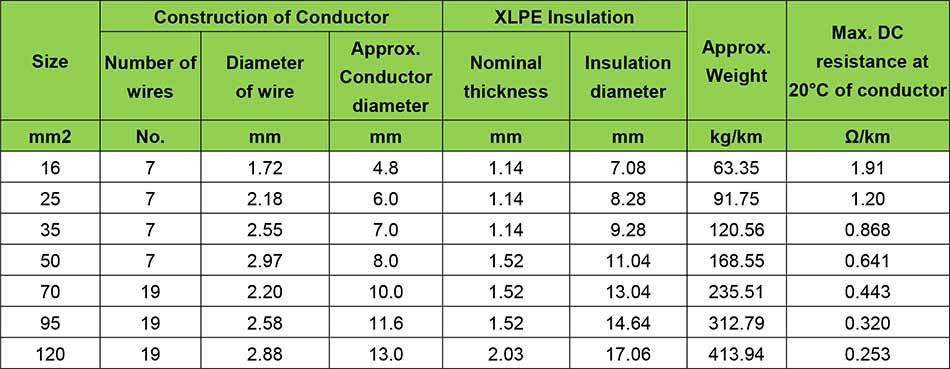

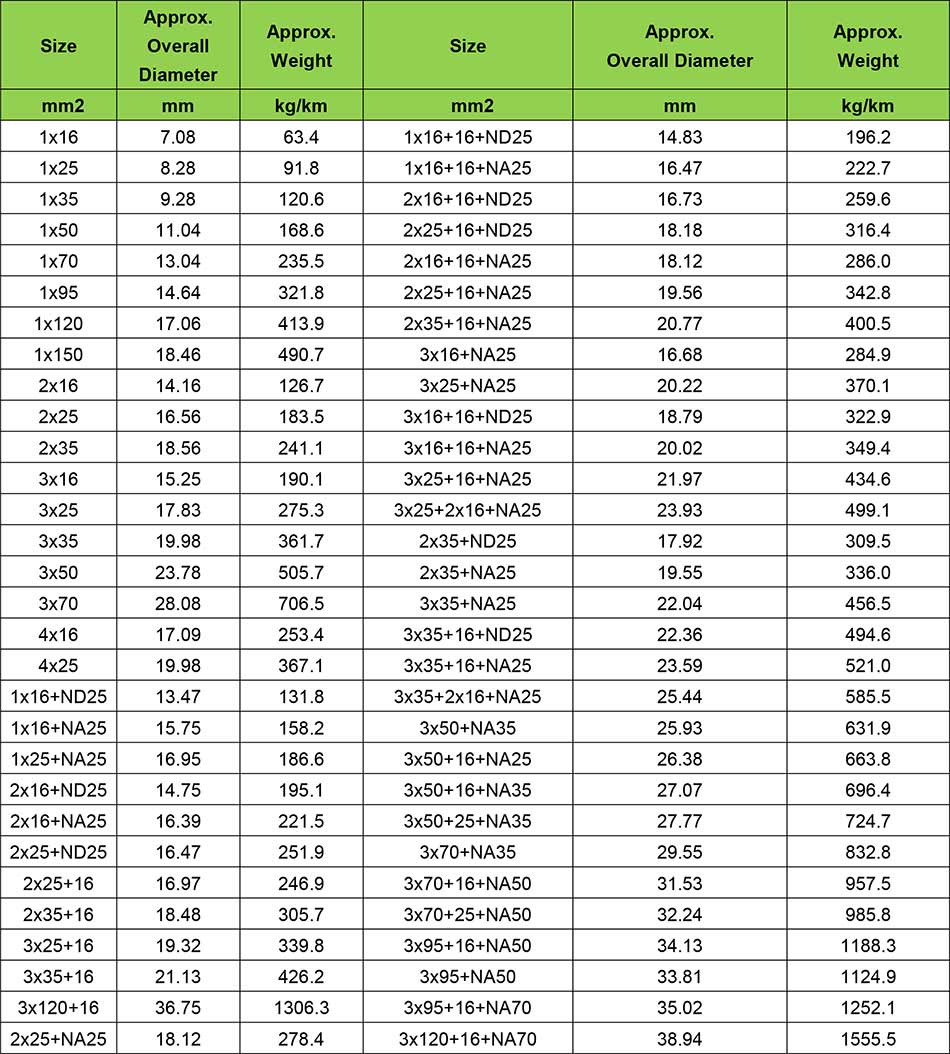

CAAI-Cable-Completed-Cable

CAAI-Cable-Neutral-Conductor-(-Aluminum-Alloy-Conductor-)

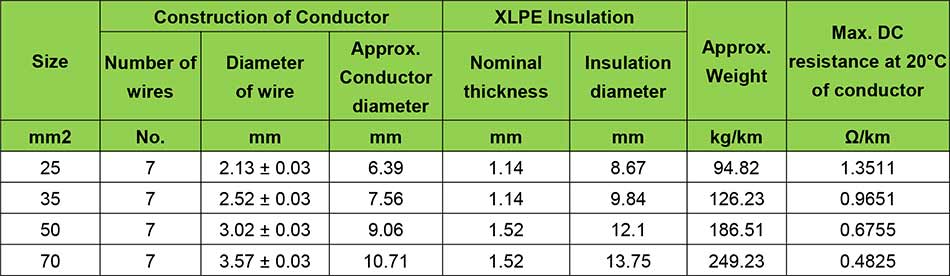

CAAI-Cable-Phase-conductor-(Aluminum-Conductor-)

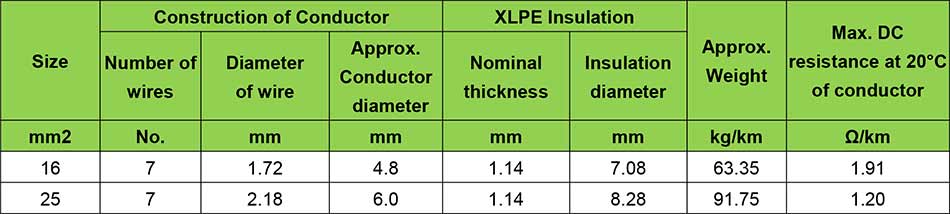

CAAI-Cable-Street-Lighting-Conductor-(-Aluminum-Conductor-)
