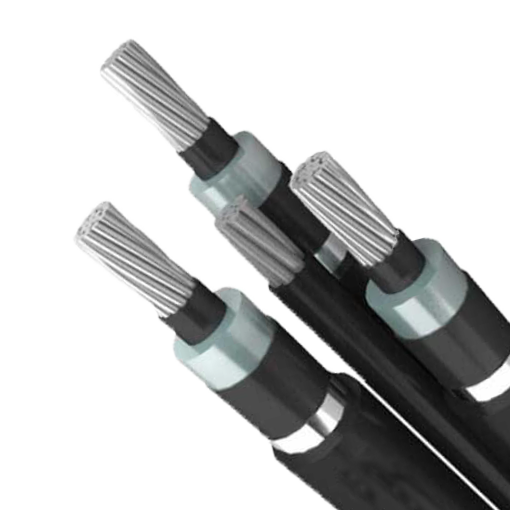

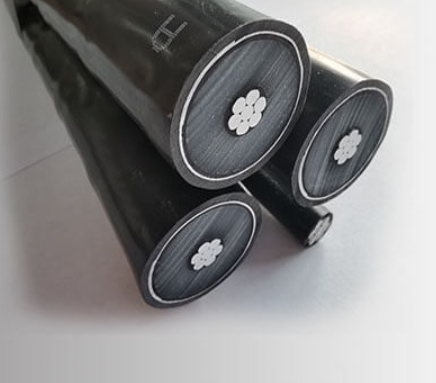

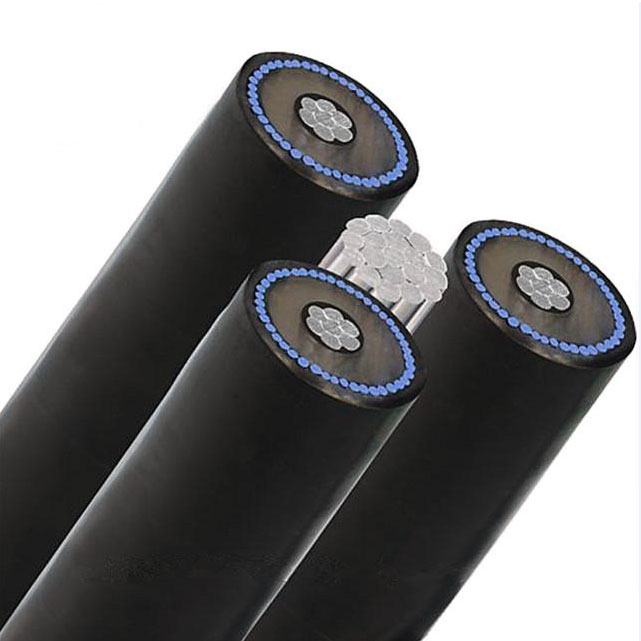

ABC MV
ABC MV ABC MV ABC MV ABC MV
Description :
Application :
    Medium Voltage aerial bundled cable for secondary overhead lines on poles or as feeders to residential premises.

Standards :
    IEC 60502-2 / AS/NZS 3599-1, BS2627, ISO/IEC 17025

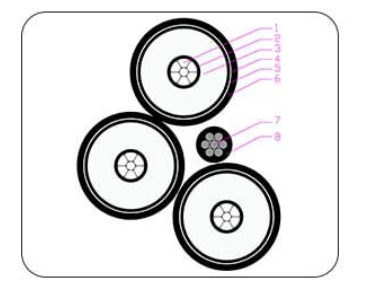

Construction :
    Conductor: Class 2 Circular compacted stranded Aluminium
    Conductor Screen: Extruded semi-conductive layer
    Insulation: XLPE (Cross-linked polyethylene)
    Insulation Screen: Extruded semi-conductive
Product title :
ABC MV
Contact us

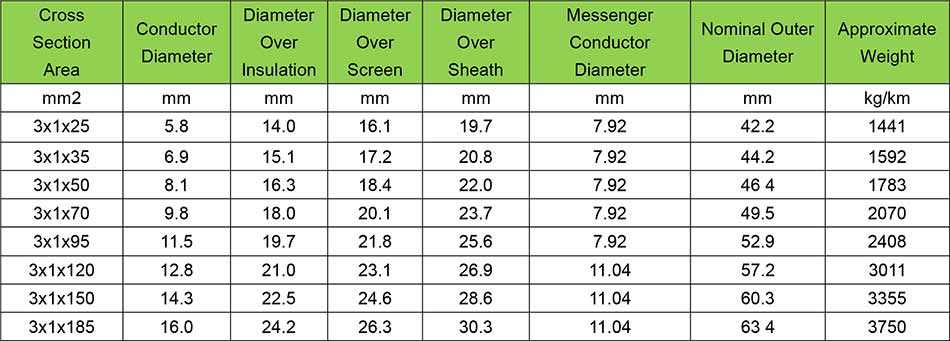

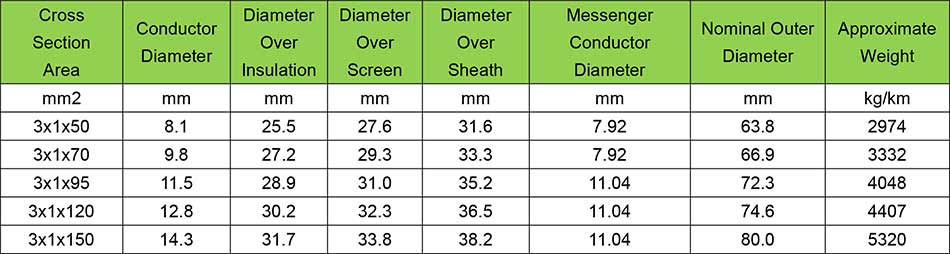

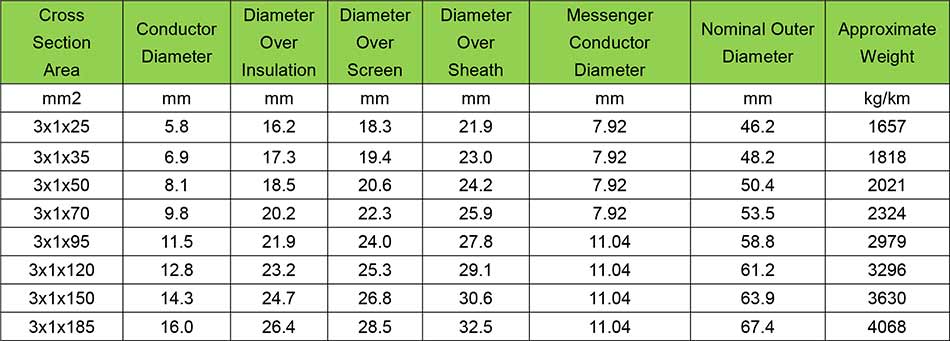

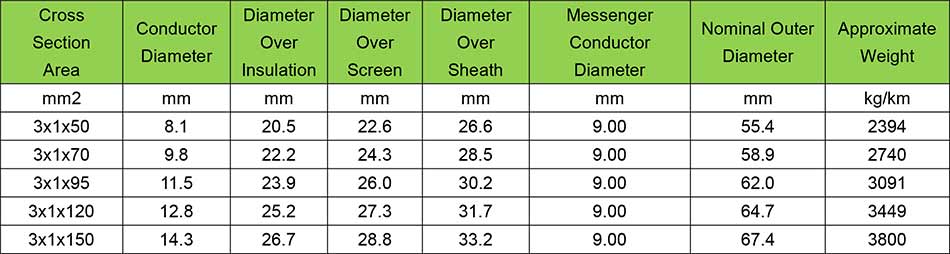

Parameter
6-10KV NA2XSA2YS CABLE
8.7-15kV NA2XSA2YS CABLE
12-20KV NA2XSA2YS CABLE
18-30KV NA2XSA2YS CABLE
