Home > Bare Conductor > AAAC1120

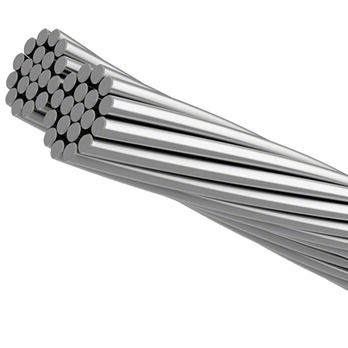

AAAC1120
AAAC1120 AAAC1120 AAAC1120
Description :
DESCRIPTION

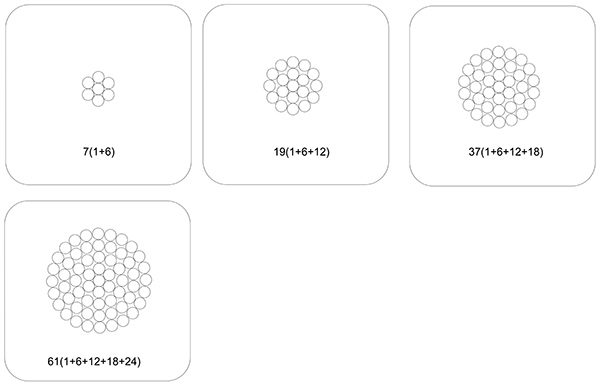

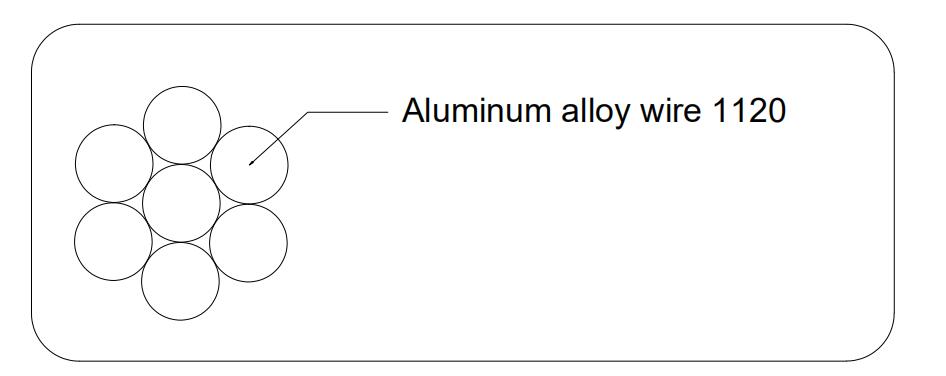

The AAAC 1120 are concentrically stranded conductor, it consists one or more layers of aluminum alloy wire 1120

APPLICATION
In air circuits where more than of the AAC conductor (between 40 and 50%) or lower weight and better corrosion resistance and the ACSR conductor. With a conductivity of 59% IACS, the aluminum alloy 1120 greatly replaces the alloy 6201 in relation to electrical resistance.

STANDARD
AS 1531
Product title :
AAAC1120
Contact us
Parameter
AAAC 1120 AS 1531
