Description :

APPLICATION
The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 90ºC and its voltage of service for all the applications is 600V.

CABLE TYPE

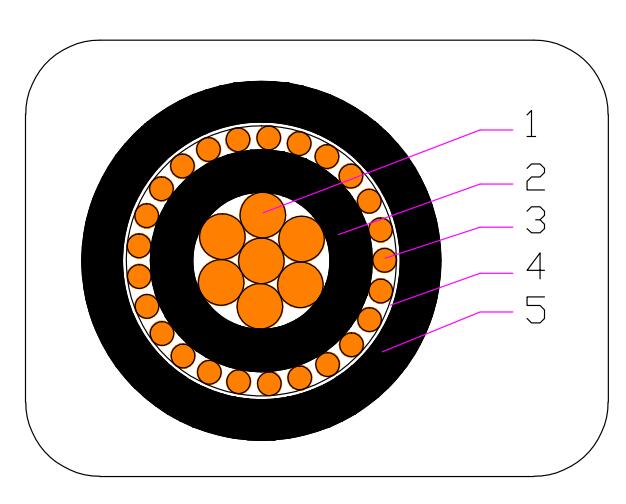

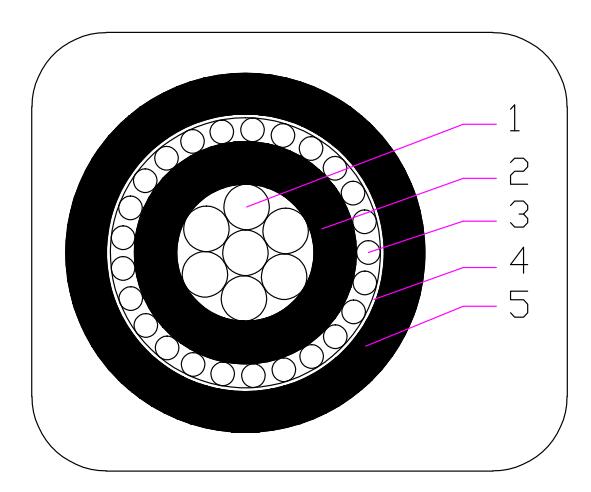

Type 1: ASTM Standard Circular Type Concentric Cables
1.Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
2.Insulation: XLPE
3.Neutral Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
4.Binder Tape: Polyester Tape or Semi-conducting Tape
5.Outer Sheath: XLPE

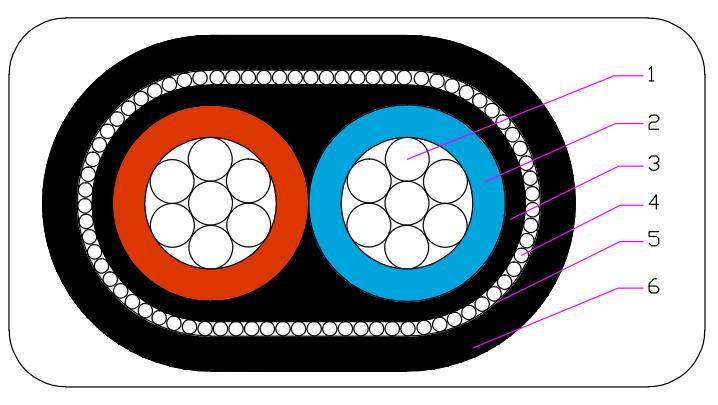

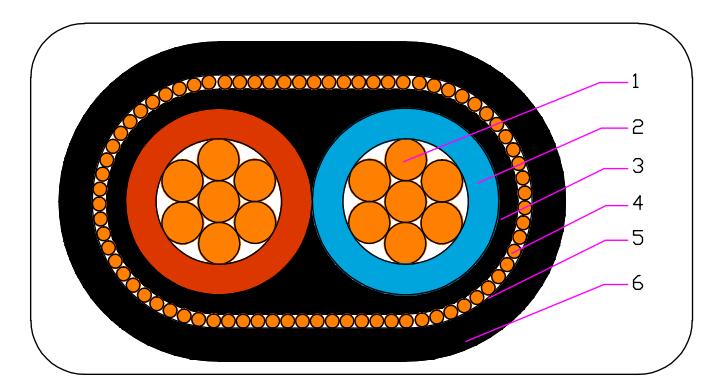

Type 2: ASTM Standard Flat Type Concentric Cables
1.Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
2.Insulation: XLPE
3.Inner Sheath:PVC
4.Neutral Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
5.Binder Tape: Polyester Tape or Semi-conducting Tape
6.Outer Sheath: XLPE

Product title :

America Market Dominica

Parameter

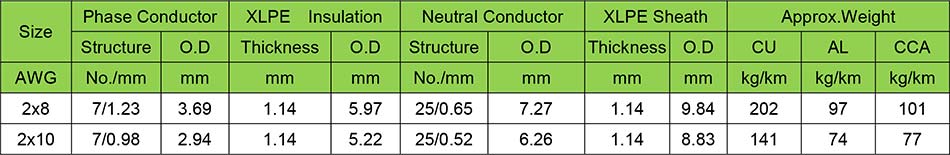

SHEET-1

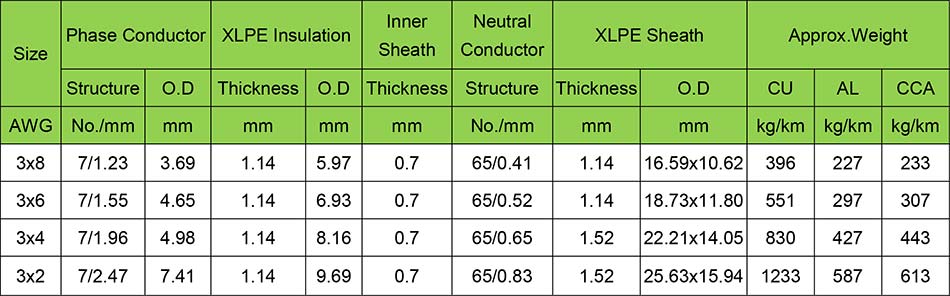

SHEET-2
