Description :

APPLICATION
Designed for welding equipment and accessories; retain their high flexibilty even under influence of ozone, light, oxygen, protective glass, oil & petrol; resistant to flame propagation, suitable for use in dry and damp conditions, outdoors and indoors

STANDARD
BS EN 50525-2-81, HD 22.6

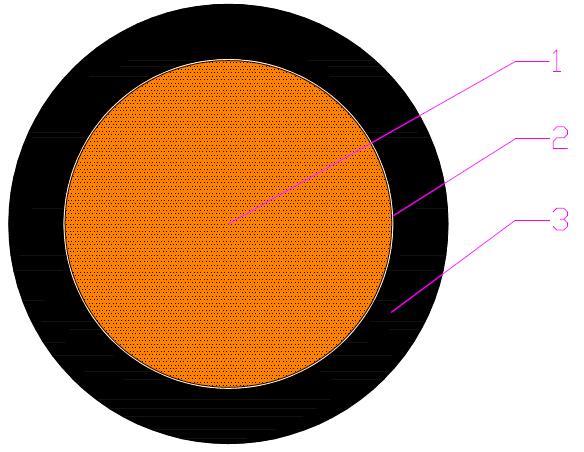

CONSTRUCTION
1.Conductor: Plain annealed copper wire
2. Binder tape: Polyester tape
3. Cover: Type EM 5 to EN 50363-2-2, the cover can consist of one or two layers.
Color of Cover: black

TECHINCAL DATA
Test Voltage 50Hz: 1000V
Maximum conductor operating temp: +85°C
Lowest ambient temperature for fixed installation: -40°C
Lowest installation temperature: -25°C
Maximum short-circuit conductor temperature: +250°C
Pulling strength: The maximum static pulling strength may
not exceed 15N/mm²
Minimum bending radius: 6 x D ; D – overall diameter of
cable
Flame propagation: EN 60332-1-2:2004, IEC 60332-1-2:2004

Product title :

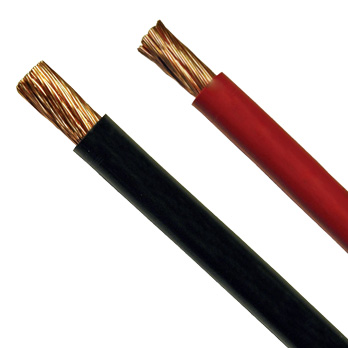

Welding Cable

Parameter

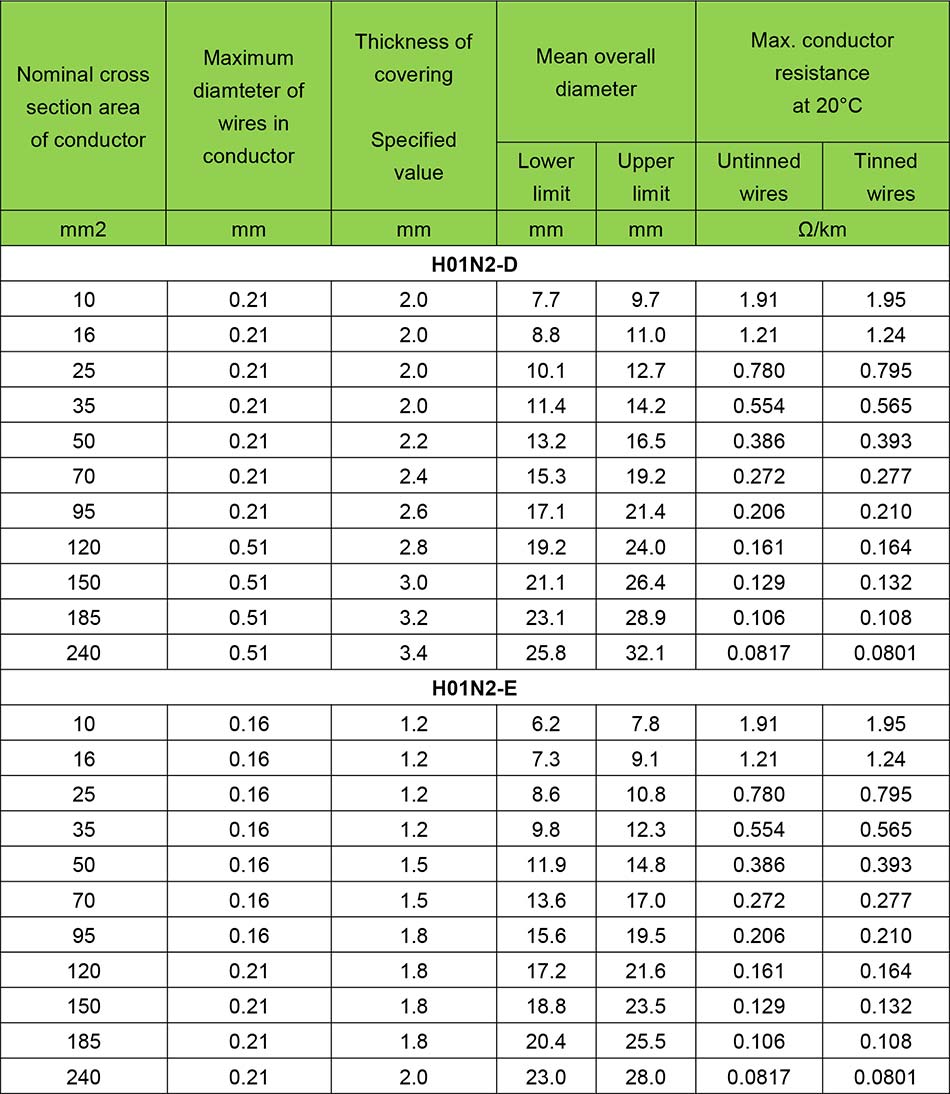

SHEET-1
