Description :

APPLICATION
These cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.

STANDARD
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

VOLTAGE
1.1/1.1kV

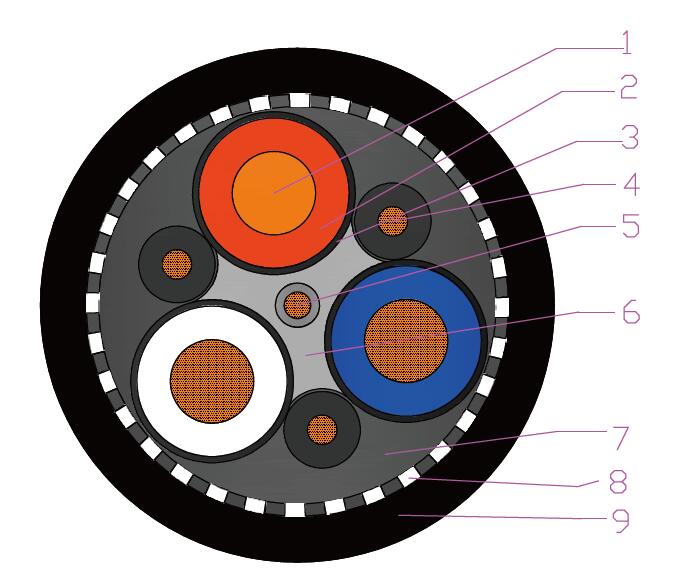

CONSTRUCTION
1. Conductor: class 5 plain annealed tinned copper conductor
2. Insulation: EPR(red, white, blue)
3. Insulation screen: semi-conductive elastomer
4. Earth core: Semi-conductive PCP insulated (Black)
5. Central pilot core: EPR insulated (Grey)
6. Cradle separator: semi-conductive PCP(Black)
7. Semi-conductive elastomer screen for core assembly
8. Textile braid reinforcement
9. Outer sheath: Heavy duty PCP(Black).Heavy duty CPE/CSP sheath can be offered upon request.

Product title :

241.1 Cable

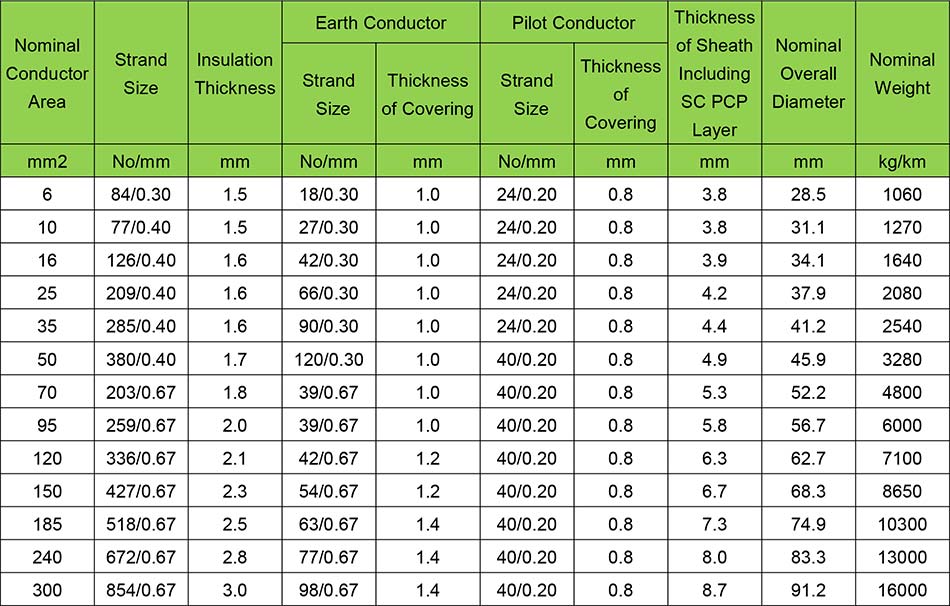

Parameter

24.1-CABLE
